Innovative laser measuring system for tool measurement and monitoring in micromachining. Thanks to its particularly space-saving design, it can be easily integrated into highly compact machine concepts - without compromising on performance or functionality. The combination of DIGILOG technology, premium laser optics and the intelligent MicroTool mode makes it the ideal solution for the highest demands in high-precision machining.

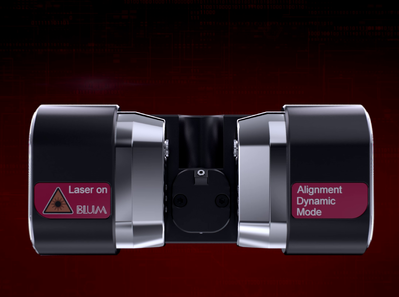

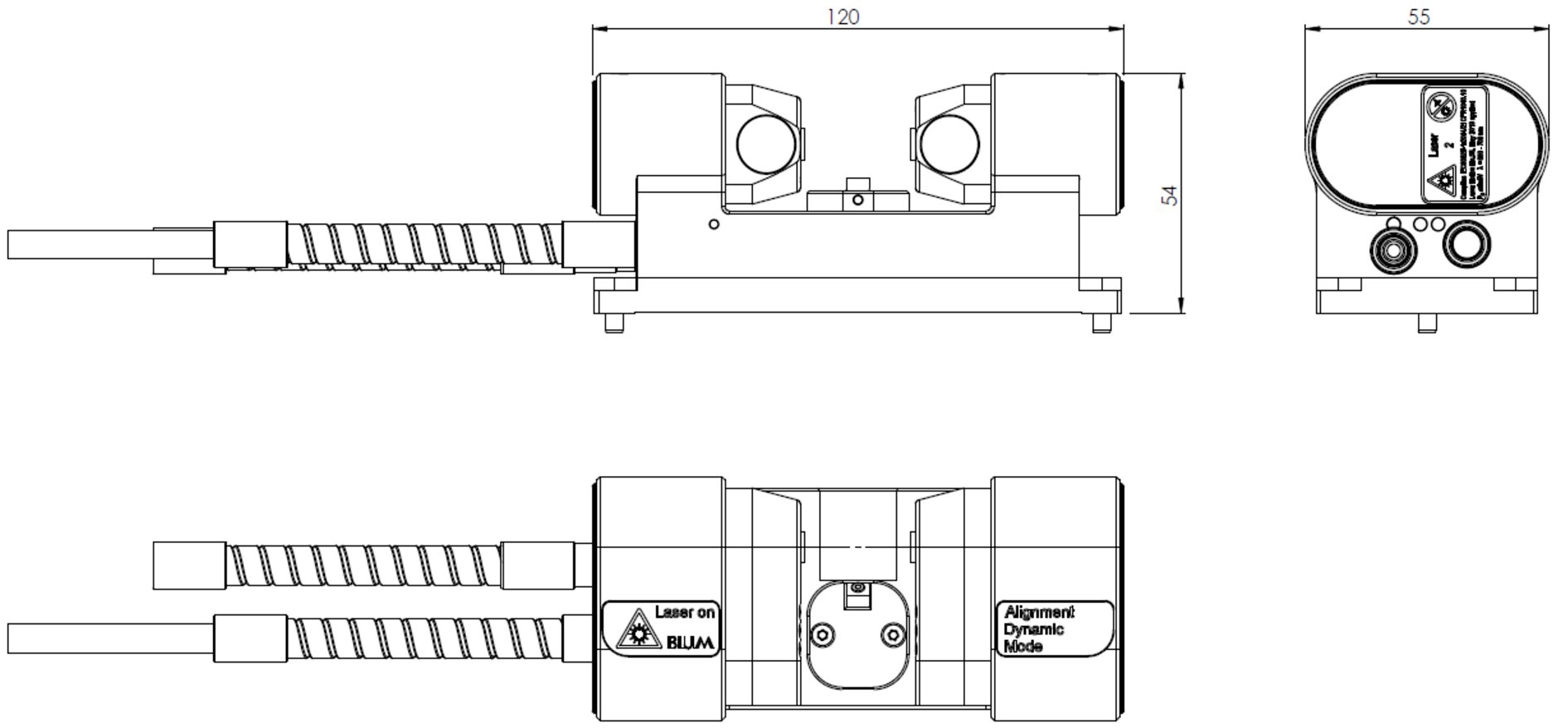

LC54-DIGILOG: Ultra-compact laser measuring system for high-precision measurement of microtools

Our most compact system

Highly dynamic measurements of all tool features

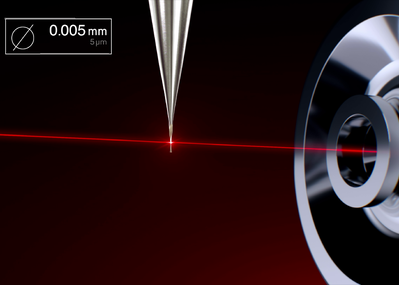

MicroTool mode: Automatic activation for micro tools for maximum precision

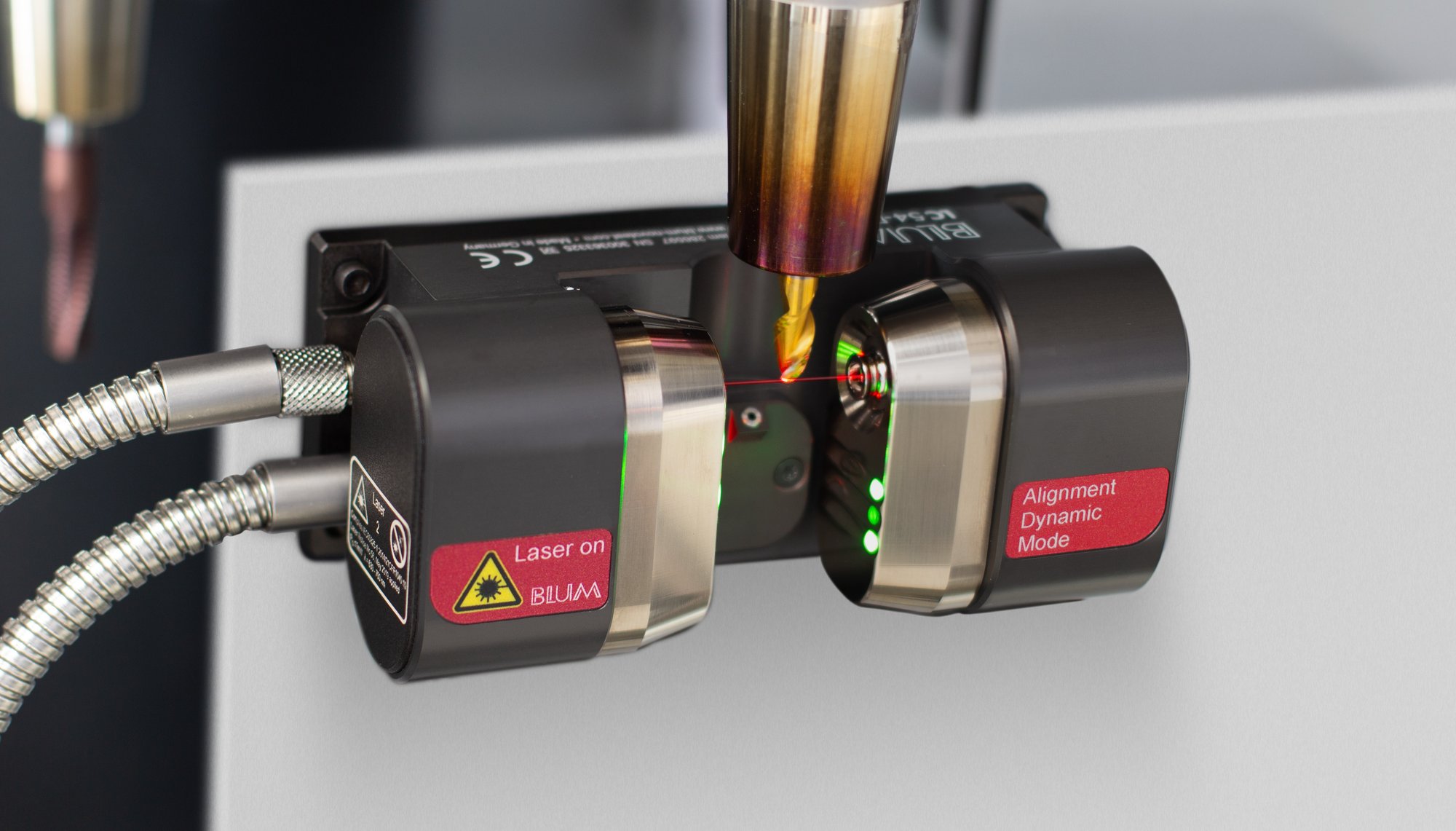

Non-contact measurement of all tool types, shapes and cutting materials
Detection of geometry changes such as wear on cutting edges
Consistently high part accuracy thanks to process-integrated temperature compensation
Reliable compensation of spindle growth and pitch circle errors
Automatic concentricity control recognizes poor tool holders and contamination
Low-manning, automated operation

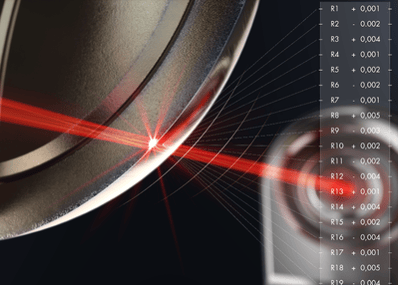

Premium laser optics & protection system

High-end laser optics for best performance under the most adverse conditions
Repeatability in the nanometer range
Highest absolute accuracy thanks to focused laser beam
Measurement of micro-tools and the smallest cutting-edge geometries
Maximum homogeneous beam shape for best results even with coolant mist
Absolute accuracy beyond all comparable measuring systems
Extremely conductive sealing air flow for optimum protection of the optics
Explosive cleaning of the aperture opening

Key Features:

Breakage detection of centric tools such as drills, mills, engraving tools, taps and reamers
Non-contact tool setting in length and radius at a nominal speed with spindle drift compensation at high rotational speeds
Monitoring of tools for broken or missing cutting edges
Setting and monitoring of tools with circular cutting-edge geometry in length, radius, and cutting-edge radius
Monitoring for cracks or wear by scanning the tool cutting edges
Wear compensation through workpiece measurements and automatic comparison with the nominal dimension
Compensation of the temperature-dependent thermal behavior of machining centers
Parameter determination for adaptive machining and process control between and after the machining steps.
